Gas Turbine Air Intake System

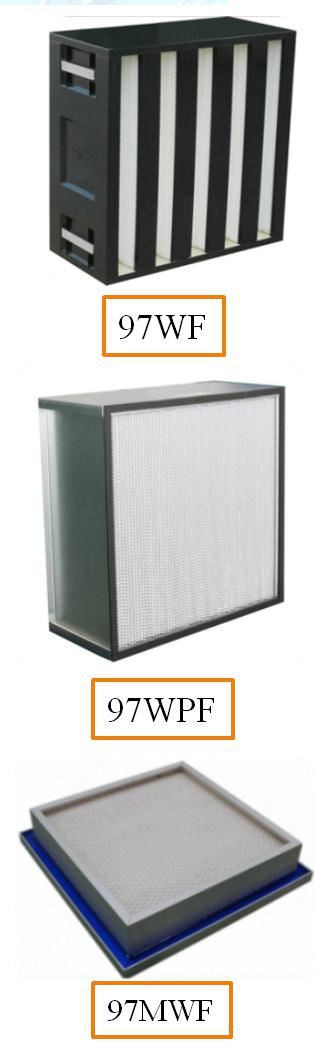

97WF-6129

610×610×292

3400

220(E10-E12)
260(H13-H14)
285(U15)

97WF-3529

610×350×292

1700

200(E10-E12)
240(H13-H14)
270(U15)

97WF-3029

610×305×292

1700

230(E10-E12)
265(H13-H14)
290(U15)

97WPF-6129

610×610×292

3400

220(E10-E12)
260(H13-H14)
285(U15)

97WPF-3529

610×350×292

1700

200(E10-E12)
240(H13-H14)
270(U15)

97WPF-3029

610×305×292

1700

230(E10-E12)
265(H13-H14)
290(U15)

97MWF-6169

610×610×69

1700

130(E10-E12)
150(H13-H14)
180(U15)

97MWF-6190

610×610×90

1700

120(E10-E12)
145(H13-H14)
170(U15)

97MWF-1290

1220×610×90

3400

120(E10-E12)
145(H13-H14)
170(U15)

Remarks：The above is regular models, other sizes can be customized

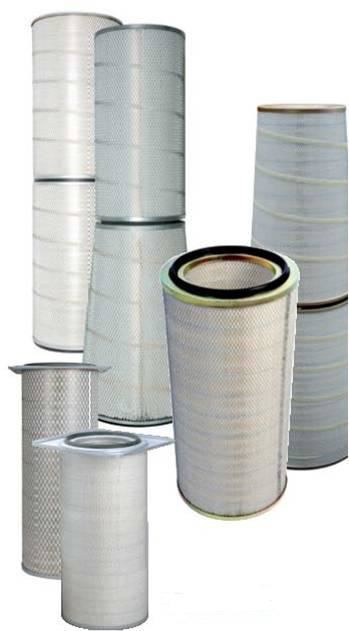

Filter Material	Plant fiber (P) / synthetic fiber (S) / coated filter paper (C) / nano filter paper (N)
End Material	Carbon steel galvanized (G) / carbon steel spray plastic (SP) / stainless steel (SS)
Inner/outer Mesh Materials	Galvanized mesh / spray plastic mesh / stainless steel mesh

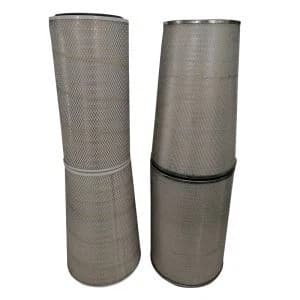

Structure Type	Cylindrical / conical type
Filtration Efficiency Grade	M5/M6/F7/F8/F9

Model	O.D.(mm)	H(mm)	Rated air flow(Nm3/h)	Initial resistance(Pa)
97GT-3261	Φ320	610	900	140(M5-F7) 180(F8-F9)
97GT-3266S	Φ320	660	1000	140(M5-F7) 180(F8-F9)
97GT-3266	Φ325	660	1000	140(M5-F7) 180(F8-F9)
97GT-3270	Φ320	700	1100	140(M5-F7) 180(F8-F9)
97GTZ-4066	Φ405 Φ325	660	1200	140(M5-F7) 180(F8-F9)
97GTZ-4166	Φ410 Φ325	660	1200	140(M5-F7) 180(F8-F9)
97GTZ-4466	Φ445 Φ325	660	1200	140(M5-F7) 180(F8-F9)
Remarks：The above are regular model, other size can be customized.The end material and inner/outer mesh materials are will be same.

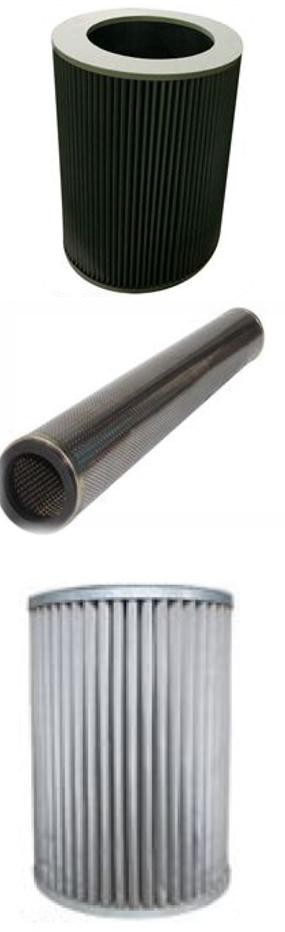

Filter Material	Glass fiber(G)/Metal fiber(S)/Polyester(P)
End Cover	Carbon steel galvanized (G) / stainless steel (SS)
Inner/outer protection mesh	Galvanized mesh/stainless steel mesh
Structure type	Cylindrical
Filtration Efficiency	3-50um
Max. Design Pressure	10MPa

Model	O.D.(mm)	I.D.(mm)	Height(mm)
97NG-1686	Φ165	Φ86	300
97NG-2011	Φ200	Φ110	300
97NG-2616	Φ260	Φ160	300
97NG-3019	Φ300	Φ190	300
97NG-3222	Φ325	Φ220	600
97NG-4029	Φ405	Φ295	600
97NG-4433	Φ445	Φ330	800
97NG-4736	Φ475	Φ360	900
Remarks：The above is regular models, other sizes can be customized

Filter material	Glass fiber (G) / polyester fiber (P)
End cover	Carbon steel galvanized (G) / stainless steel (SS)
Internal protection mesh	Galvanized mesh/stainless steel mesh
Structure type	Cylindrical
Maximum filtration efficiency	Liquid：99.5%(＜10um)，100%（10um）
	Solid：99.5%(1-5μm)，100%（＞5um）
Max. design pressure	10MPa

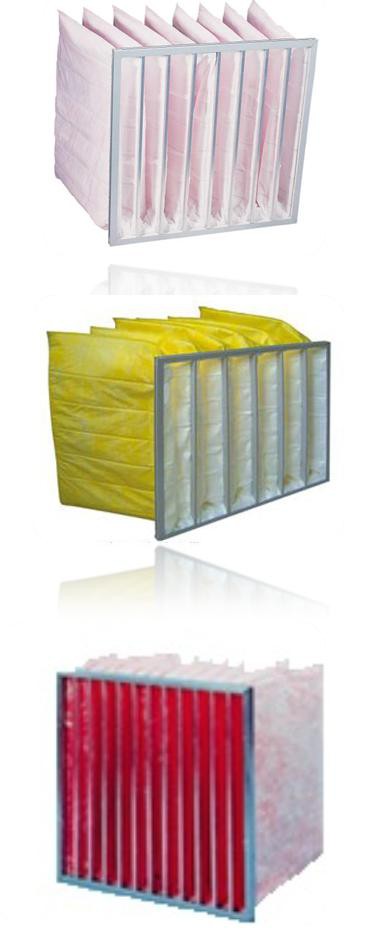

Filter Material	Chemical fiber (C) / glass fiber (G)
Framed Material	Carbon steel galvanized (G) / aluminum alloy (A) / stainless steel (SS)
Structure Type	Frame bag
Filtration Efficiency	G3/G4/M5/M6/F7

Model	Size(mm)	Rated air flow(m3/h)	Initial resistance (Pa)
97BF-5935	592×592×350	3400	50(G3-G4) 100(M5-F7)
97BF-5950	592×592×500	3400	45(G3-G4) 90(M5-F7)
97BF-5955	592×592×550	3400	45(G3-G4) 90(M5-F7)
97BF-5965	592×592×650	3400	40(G3-G4) 85(M5-F7)
97BF2935	592×292×350	1700	50(G3-G4) 100(M5-F7)
97BF2950	592×292×500	1700	45(G3-G4) 90(M5-F7)
97BF2955	592×292×550	1700	45(G3-G4) 90(M5-F7)
97BF2965	592×292×650	1700	40(G3-G4) 85(M5-F7)
Remarks：The above is regular models, other sizes can be customized

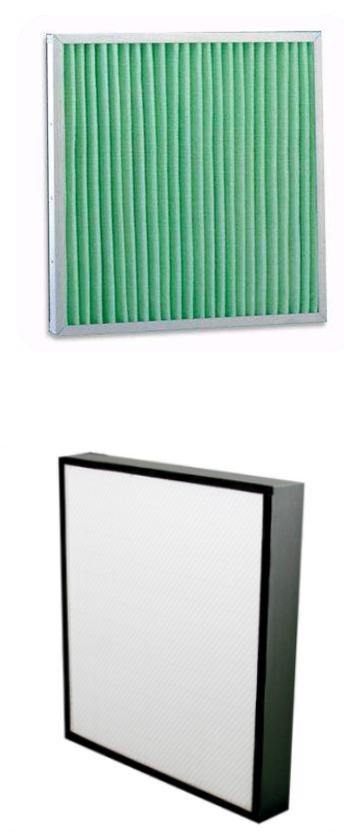

Filter Material	Chemical fiber(C)/Glass fiber(G)
Frame Material	Carbon steel galvanized (G) / aluminum alloy (A) / stainless steel (SS)
Structure Type	Frame plate
Filtration Efficiency	G3/G4/M5/M6/F7/F8/F9

Model	Size(mm)	Rated Air Flowm3/h	Initial Resistance
97PF-5946	595×595×46	3400	65(G3-G4) 130(M5-F7) 220(F8-F9)
97PF-5996	595×595×96	3400	40(G3-G4) 100(M5-F7) 190(F8-F9)
97PF-2946	595×290×46	1700	65(G3-G4) 130(M5-F7) 220(F8-F9)
97PF-2996	595×290×96	1700	40(G3-G4) 100(M5-F7) 190(F8-F9)
Remarks：The above is regular models, other sizes can be customized

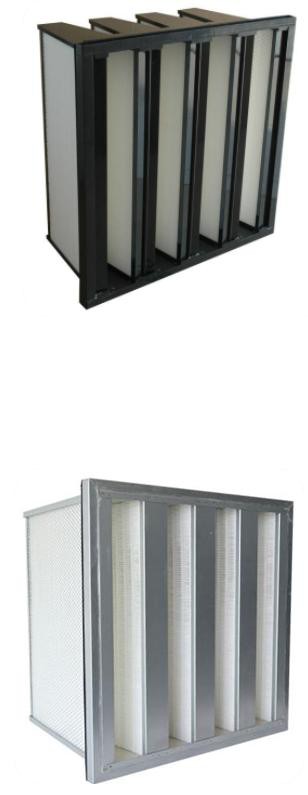

Filter Material	Chemical fiberC)/Glass fiber
Frame Material	Carbon steel galvanized (G) / plastic (AB) / stainless steel (SS)
Structure Type	V-shell
Filtration Efficiency	F7/F8/F9/E10/E11/E12

Model	Size(mm)	Rated Air Flow (m3/h)	Initial Pressure(Pa)
97CF-5929	592×592×292	3400	150(F7-F9) 210(E10-E12)
97CF-2829	592×287×292	1700	150(F7-F9) 210(E10-E12)
97CF-4929	592×490×292	3400	170(F7-F9) 230(E10-E12)
97CF-5943	595×595×435	3400	110(F7-F9) 160(E10-E12)
Remarks：The above is regular models, other sizes can be customized

Model	O.D.(mm)	I.D.(mm)	Height(mm)
97LC-9550	Φ95	Φ55	508
97LC-9510	Φ95	Φ55	1016
97LC-1160	Φ114	Φ83	600
97LC-1191	Φ114	Φ83	915
97LC-1113	Φ114	Φ83	1380
97LC-1556	Φ152	Φ90	560
97LC-1583	Φ152	Φ90	830
97LC-1511	Φ152	Φ90	1104
Remarks：The above is regular models, other sizes can be customized
