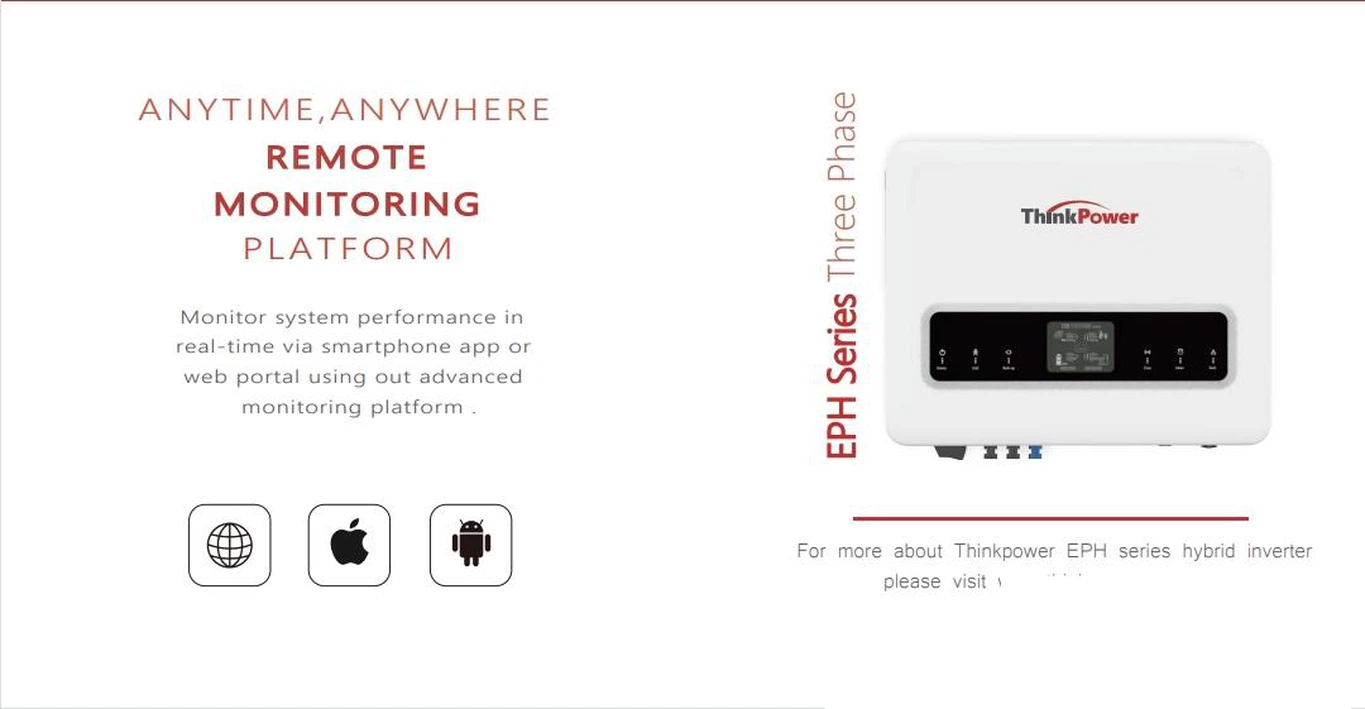

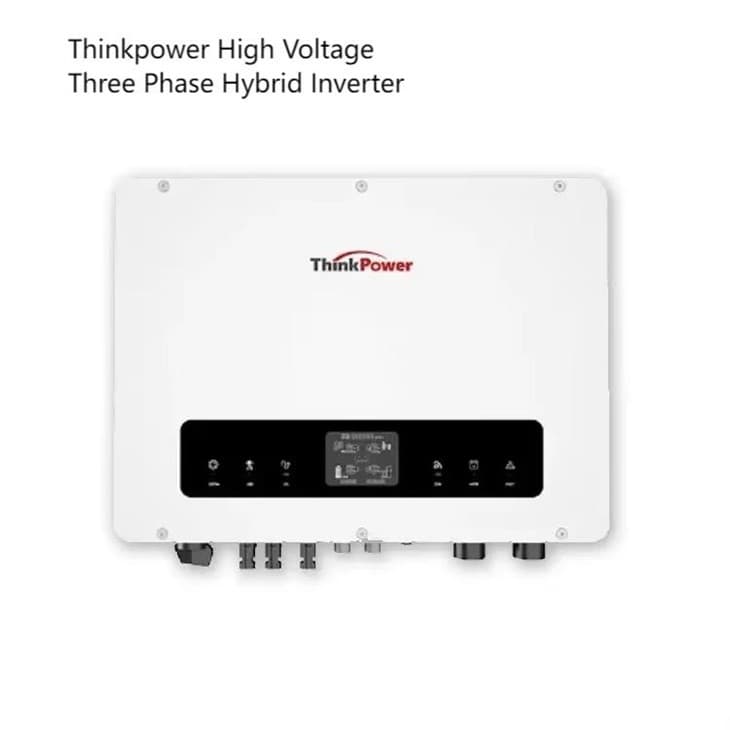

Thinkpower EPH Series Three Phase Hybrid Inverter Thinkpower is a professional solar inverter manufacturer with 14 years R&D. EPH series 4kw to 12kw solar hybrid inverter is an ideal solution for solar energy storage, it boasts of top industrial level asymmetric three phase output, accurate power export limit and extremely low self power consumption. It is advantageously with clear display view from the big lcd screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
Introduction to Thinkpower High-Voltage
Three-Phase Hybrid Inverter
The Thinkpower High-Voltage Three-Phase Hybrid Inverter is a cutting-edge energy conversion solution designed to optimize power management for residential, commercial, and industrial applications. Combining advanced technology with robust performance, it seamlessly integrates solar energy, grid power, and battery storage to deliver efficient, reliable, and sustainable energy solutions.
Load consumption monitoring
Big LCD display
Power export limit
IP65 protection
Users can check 24-hour load consumption enabled Thinkpower monitoring solution . And built-in anti-backflow limit is available to control export power
24hours loads consumption monitoring
Power export limit
4.0KW/5.0KW/6.0KW/8.0KW/10.0KW/12.0KW
High output
Working in 45 degrees high temperature
without power degradation
Accuracy
Anti-back ow control accuracy<20
SML/DRED Function
The latest SML/DRED functions
arestandard for the
Thinkpower Hybrid Inverter features and benefits:
Key Selling Points:
High Efficiency & Energy Savings
Boasts a 98% peak efficiency with Maximum Power Point Tracking (MPPT) technology, ensuring optimal harvest of solar energy even under low-light conditions.
Reduces electricity costs by intelligently prioritizing solar energy usage and minimizing grid dependency.
Hybrid Functionality for Energy Independence
Three-in-One Operation: Supports solar-to-grid, solar-to-battery, and grid-to-battery modes, enabling seamless transitions between energy sources.
Backup Power Supply: Provides uninterrupted power during grid outages by automatically switching to battery storage.
High-Voltage Compatibility
Compatible with high-voltage battery systems (e.g., 200-600V), reducing current losses and improving system safety and efficiency.
Supports modular battery expansion for flexible energy storage capacity.
Smart Energy Management
AI-Powered Energy Optimization: Learns user habits and adjusts energy distribution dynamically to maximize self-consumption.
Remote monitoring and control via a user-friendly app, offering real-time insights into energy production, consumption, and savings.
Three-Phase Balanced Output
Ensures stable, balanced power distribution for three-phase loads, ideal for commercial setups or homes with high-power appliances (e.g., HVAC systems, EV chargers).
Durability & Safety
Built with industrial-grade components and IP65 protection for harsh environments.
Features comprehensive safety protections (overload, short-circuit, surge, anti-islanding) to safeguard equipment and users.
Grid Services & Sustainability
Supports grid-tied functions like feed-in tariffs and peak-shaving.
Reduces carbon footprint by enabling 100% renewable energy utilization.
Ideal Applications:
Residential communities seeking energy independence.
Commercial facilities aiming to cut operational costs.
Industrial plants requiring stable, high-capacity power.
Why Choose Thinkpower?
Thinkpower's hybrid inverter combines innovation, reliability, and scalability, empowering users to future-proof their energy systems while contributing to a greener planet.
Model No | EPH4KTL | EPH5KTL | EPH6KTL | EPH8KTL | EPH10KTL | EPH12KTL | |
Input(DC) | |||||||
Max. DC power | 6000W | 7500W | 9000W | 12000W | 15000W | 15000W | |
Max. DC voltage | 1000Vd.c | ||||||
MPPT voltage range | 200~850 Vd.c | ||||||
Max. input current | 13A/13A | ||||||
Max.input short circuit per MPPT | 18A/18A | ||||||
Number of MPP trackers | 2 | ||||||
Strings per MPP tracker | 1 | ||||||
Battery input |
| ||||||
Battery type | Li-Ion | ||||||
Battery voltage range | 130-700V | ||||||
Maximum charge/discharge current | 25/25A | ||||||
Charge strategy for Li-tou Battery | Self-adaptation to BMS | ||||||
Output (AC) |
| ||||||
AC nominal power | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | |
Max AC apparent power | 5000VA | 5500VA | 7000VA | 8800VA | 11000VA | 13200VA | |
Nominal AC output | 8A | 10A | 12A | 15A | 17A | 20A | |
AC output range | 50/60Hz; 280-490Vac(Adj) | ||||||
Power factor | 0.8 leading ...0.8 lagging | ||||||
Harmonics | <3% | ||||||
Grid type | 3W/N/PE | ||||||
Three-phase unbalance output | 100% | 80% |
| ||||
AC Output(Back up) |
| ||||||
Max AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
|
Norminal output voltage | 400/380V | ||||||
Norminal output frequency | 50/60Hz | ||||||
Output THDV(@Liuear Load) | <3% | ||||||
Efficiency |
| ||||||
Maximum conversion efficiency | 98.0% | 98.0% | 98.2% | 98.2% | 98.2% | 98.2% |
|
European efficiency | 97.3% | 97.3% | 97.5% | 97.5% | 97.5% | 97.5% |
|
MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
|
Safety and protection |
| ||||||
DC reverse-polarity protection | yes | ||||||
DC breaker | yes | ||||||
DC/AC SPD | yes | ||||||
Leakage current protection | yes | ||||||
Insulation impedance Dectection | yes | ||||||
Residual current protection | yes | ||||||
Output short circuit protection | yes | ||||||
Battery reverse connection protection | yes | ||||||
General Parameters |
| ||||||
Dimensions | 516/427/184mm | ||||||
Weight | 26kg | ||||||
Operating temperature range | -25℃... 60℃ | ||||||
Degree of protection | IP65 | ||||||
Cooling concept | Natural convection | ||||||
Topology | Transformerless | ||||||
Display | LCD | ||||||
Humidity | 0-95%, no condensation | ||||||
Communication | Standard WiFi;GPRS/LAN(optional) | ||||||
BMS communication | CAN/ RS485 | ||||||
Meter communication | RS485 | ||||||
Warranty | Standard 5 years; 7/10 years optional | ||||||
Scene 01
Scene 02
Scene 03
Scene 04

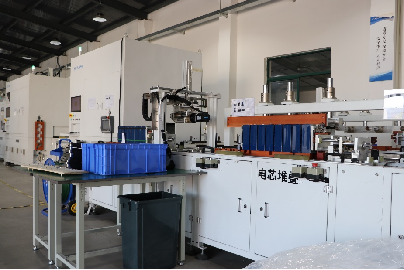

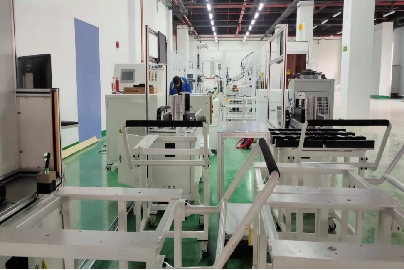

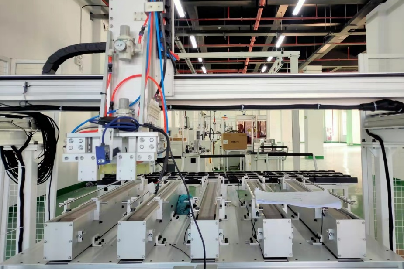

Shanghai 1GWh Residential ESS PACK production line.

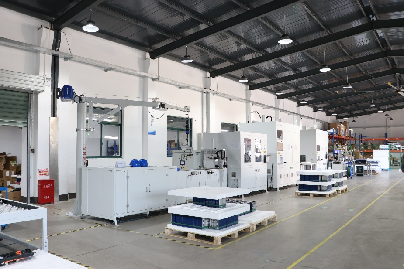

Shanghai The 3GWh Commercial ESS PACK production line
ongkang 5GWh digital energy storage industrial base (under construction)
