The addition of energy storage solution to renewable energy generation solves this problem.

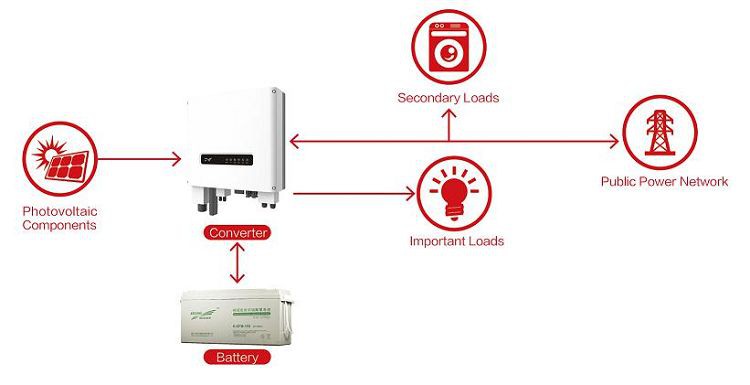

Residential Energy Storage Solution
● Home use energy storage system refers to the combination of inverters, storage battery groups and other energy storage components to implement an uninterruptible power supply system for home loads that combines renewable energy and implements load shifting to improve power quality and brings economy benefits while reducing the electricity bill.
● Recommended products: SPH3600-BL, SPH5000-B;
● Application: home, villas, and other residential applications;
● Solution features:
Small in volume, simple and flexible system installation, short construction time, low investment costs;
Emergency power supply, load shifting, improved power supply quality;
Increased electrical safety level.
● Application mode:
Integrated PV and storage, self-developed and self-use, surplus power is released to the grid;
Remote monitoring with smartphone or tablet, automatic power grid switching, highly automated operation;
Low noise and low radiation system operation.

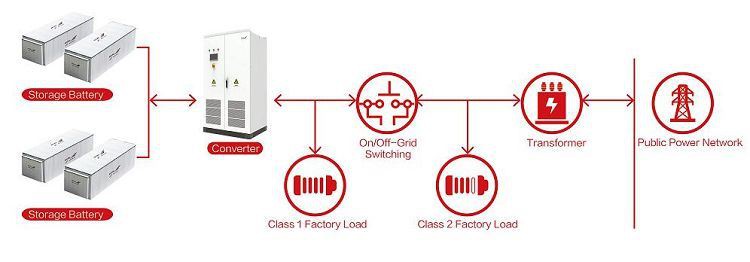

Commercial Energy Storage Solution
● For companies, factories, commercial offices, charging stations and other places that use large amounts of electric power and have large load fluctuations or other places with large electric price differences between peak and regular usage, the installation of an energy storage system will have a major impact. The energy storage system can perform load shifting according to high and low electricity pricing to stabilize the power grid and take advantage of price differences; during power grid blackouts it can switch quickly to off-grid power supply to implement emergency power supply to ensure important loads continue to operate; as load requirements increase, the energy storage system makes it easier scale the power supply system and to smooth out the load impact thus saving of the investment costs of rewiring and transformer scaling in applications such as electric vehicle charging stations or scaling old power distribution systems, etc.
● Recommended products: PCS500K-A, PCS250K-A, PCS100K-A, etc.
● Applications: industrial companies, data centers, charging stations, etc.
● Solution features:
Load shifting: increases company profitability;
Emergency power supply: can be used to replace fire emergency power supply (EPS) to save on system investment costs;
Smart monitoring: remote monitoring, highly automated operation.

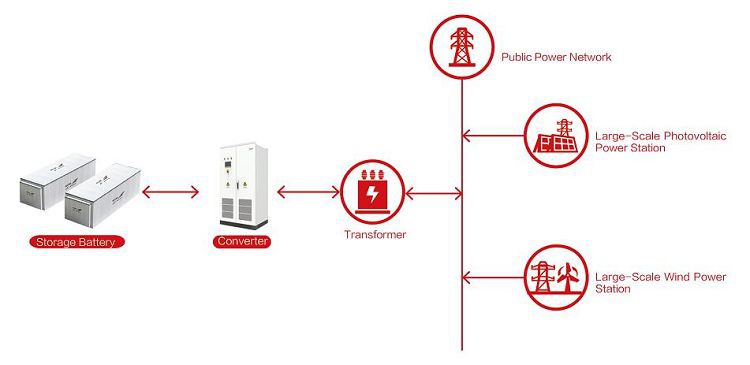

Wind and Solar Curtailment Solution
l Since renewable energy generation is only possible at certain times and is volatile and unpredictable, its large-scale inclusion will introduce adjustment difficulties to power grids and large-scale wind and solar curtailment problems can also occur. The addition of energy storage solution to renewable energy generation solves this problem. By storing the unused energy and releasing it back during times of peak energy usage, the objective of smooth power delivery is achieved, and the problem of the instability in renewable energy generation is solved while waste is prevented.
l Applications: locations with renewable energy generation limitations
l Solution features:
Reduces the effects of wind and solar curtailment, improves economic benefits;
Improves grid power generation stability and planning;
Improves power grid scheduling.
l Recommended products: PCS500K-B, PCS1000K-B, etc.

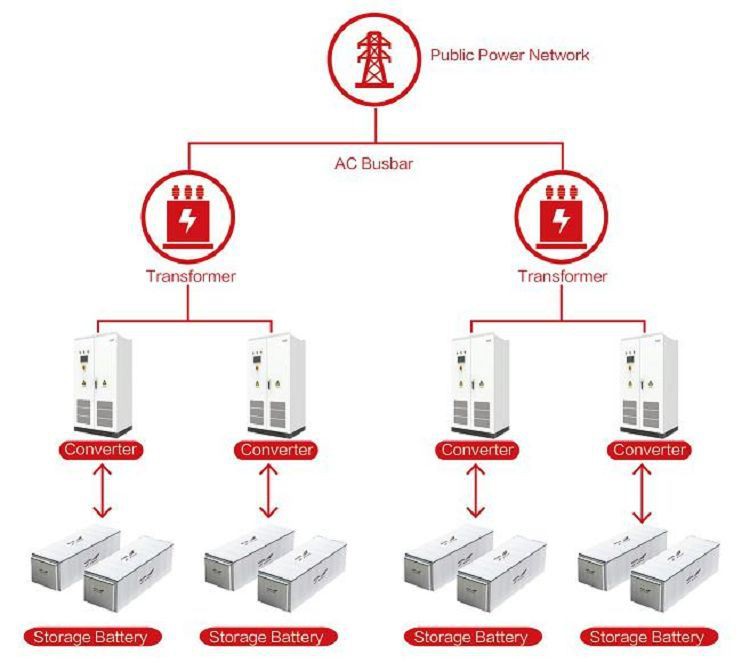

Frequency and Voltage Modulation System Solution
l Large fluctuations in frequency and voltage in local power grids occur when steel mills, glass factories, and other applications require large bursts of electric power. This usually leads to an unstable power grid which affects the stability of other electrical equipment. In these situations, the addition of an energy storage system to the power grid can satisfy the requirement for quick response to sudden frequency and voltage changes and handle short term load power changes. Since the energy storage system only needs to handle power regulation for short periods of time, super capacitors or other power batteries can be used for short term energy storage.
l Applications: primary power grid frequency and voltage modulation
l Solution features:
Instant implementation of primary frequency modulation, secondary frequency modulation can also be implemented;
Effectively improves power grid frequency and amplitude stability;
Fast dynamic response speed.
l Recommended products: PCS500K-B, PCS1000K-B, etc.

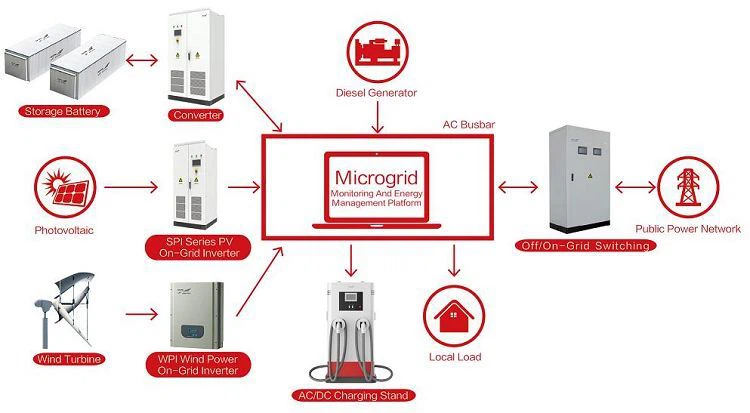

Micro-grid Energy Storage Solution
● Micro-grid power distribution systems are formed from distributed power sources, energy storage devices, energy conversion devices, related loads as well as monitoring and protection devices. They are usually used in low and medium voltage power distribution networks and involves many types of energy devices to provide clean, efficient and stable electric power to loads.
● Solution features:
Ensures emergency power supply for various small ecosystems; isolated island operation can also be implemented;
Highly permeable renewable energy can be introduced making it environmentally friendly;
Customized photovoltaic, fuel power generation, and storage solutions based on local conditions; better economic efficiency can be implemented;
High efficiency energy management; remote monitoring and highly automated operation can be implemented.
● Recommended products: PCS500K-B, SPI500K-B, energy management system
