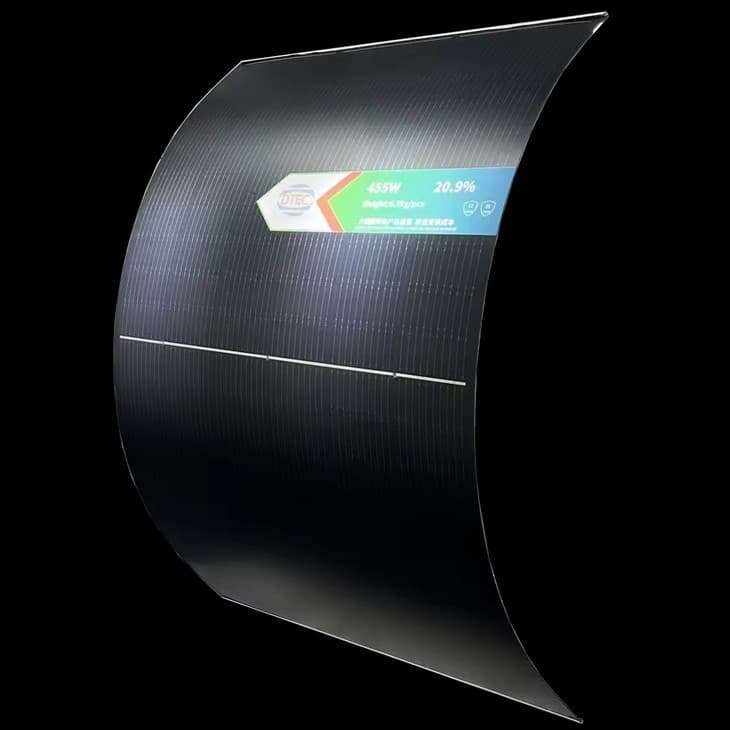

BIPV Self-Cleaning Flexible Solar Panel

BIPV Self-Cleaning Flexible Solar Panel

NANO Self-Cleaning All black flexible solar panel BIPV flexible latest solar panels For Rv boating camping tent use

Description:
Key Attributes
Cell size 182mmx91mm
Place of Origin Sichuan, China
Panel Dimensions customizable
Brand Name Beijing Jinrun Taihe
Model Number FL/MF-420W

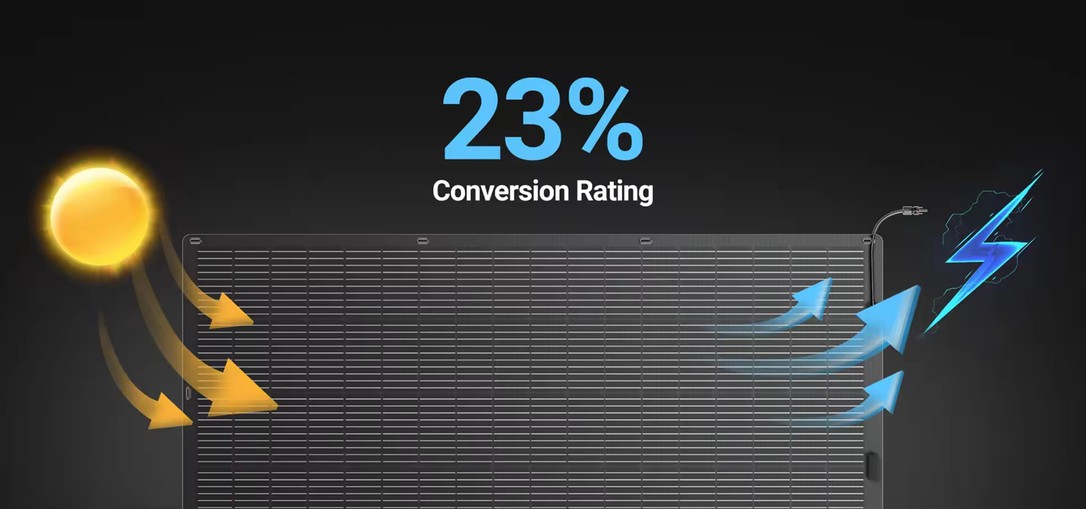

Panel Efficiency 19.2-22.5%
Use life 25 Years
Type PERC, Half Cell, Flexible
Warranty 25 Years
Weight 7.2kg
Cell Type Mono
Power Tolerance 0/+5W
Power Range 420~530W
Application Boat RV Camping
Frame Frameless

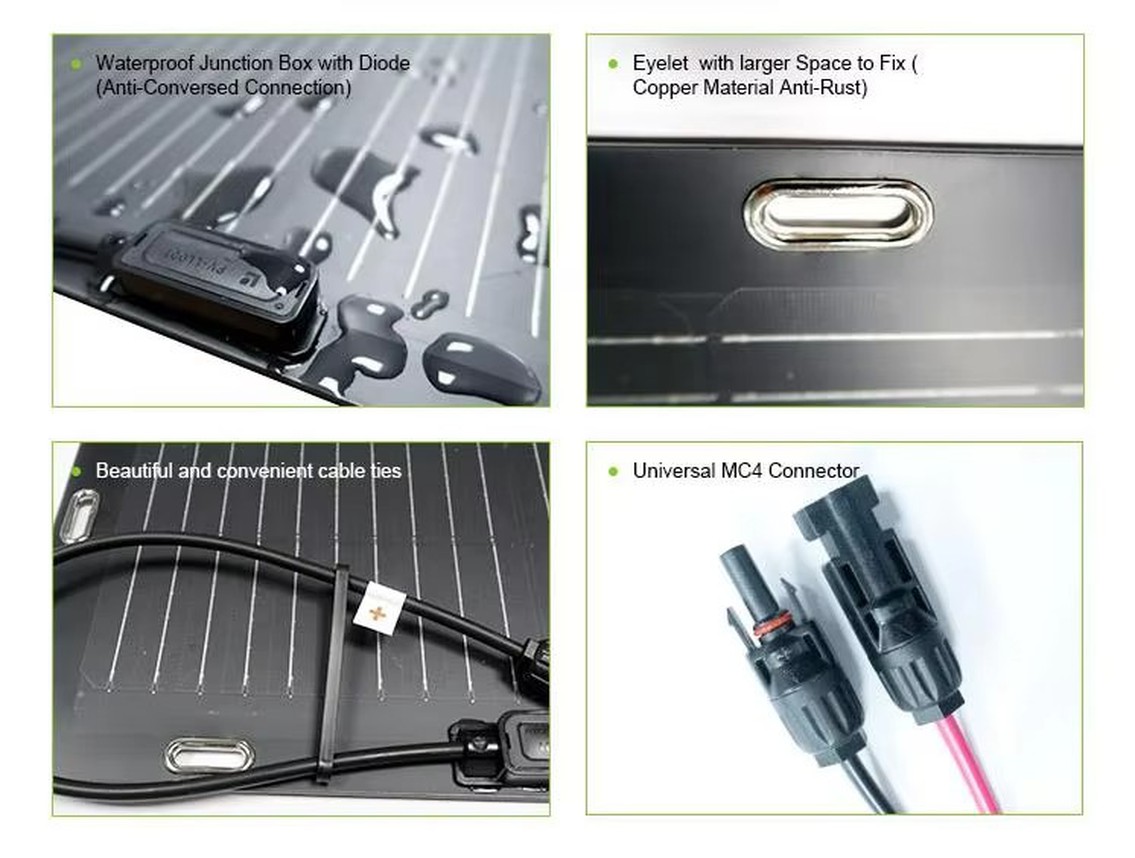

Junction Box IP68 Rated, 3 Diodes

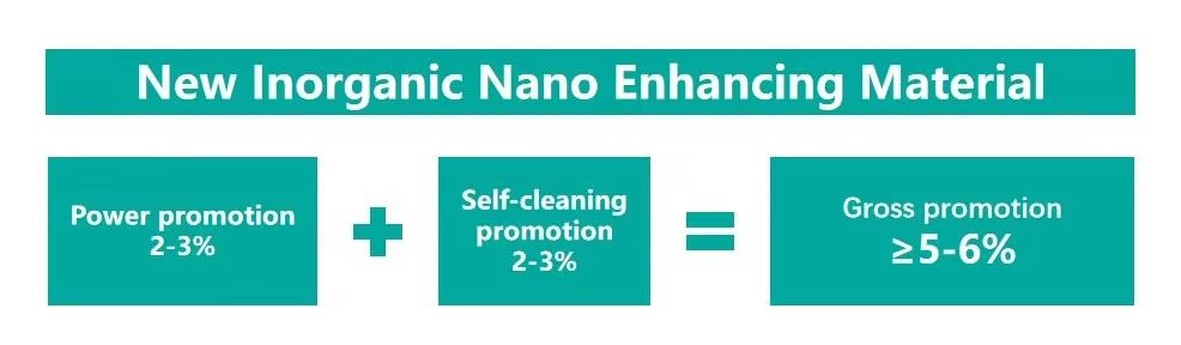

Technical Advantages:
1 High weather resistance:Inorganic resin as film forming agent, solidify at room temperature:.

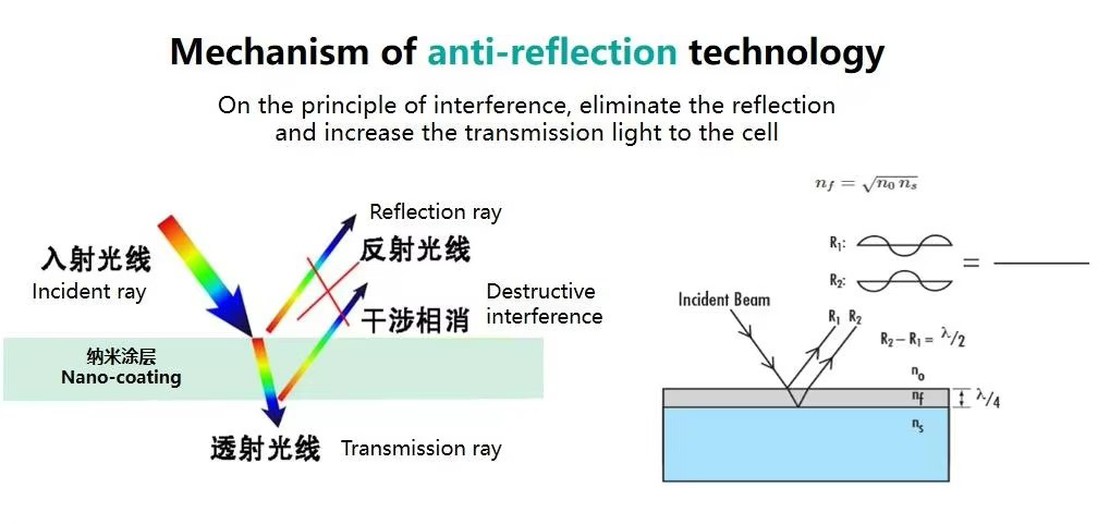

2 High transmittance:Graft modified and homogenized SiO2 to form hierarchical transmission structure.

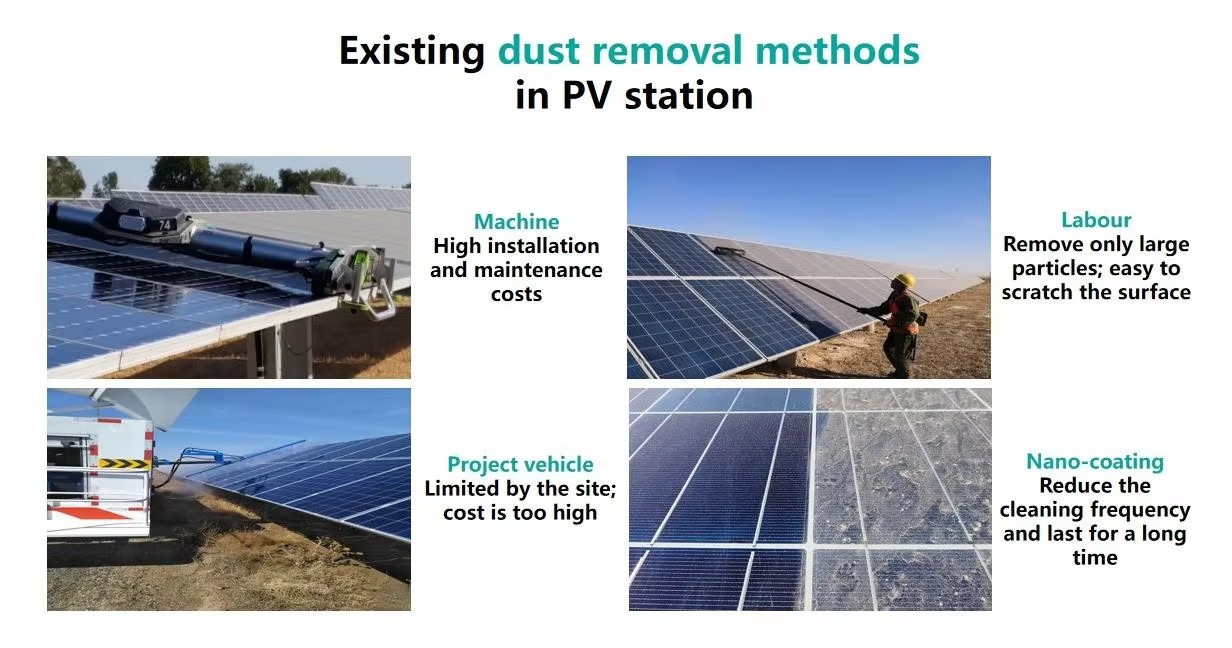

3 Self-cleaning:Self-developed TiO2-Pt catalyst to decompose surface organic stains.

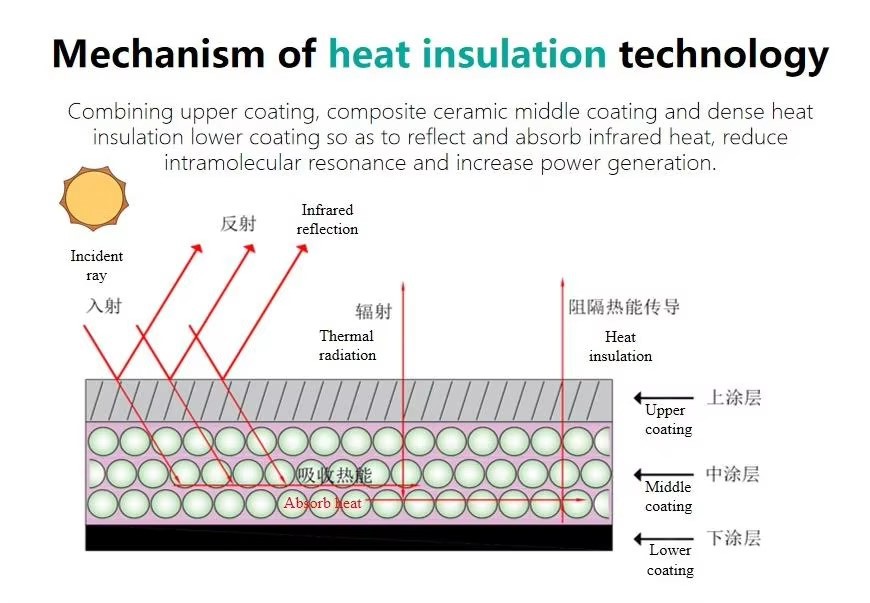

4 Anti-static:Nano-SnO2 was added to improve the anti-static and anti-fouling ability. 5 Lower surface temperature:Composite metal ceramic nano coating to insulate heat.

Detail-01

Detail-02

Detail-03

Detail-04

Detail-05

Detail-06

Detail-071

Detail-08

Detail-09

Detail-10

Detail-11

Detail-12

Detail-13

Detail-14

Detail-25

Detail-26
