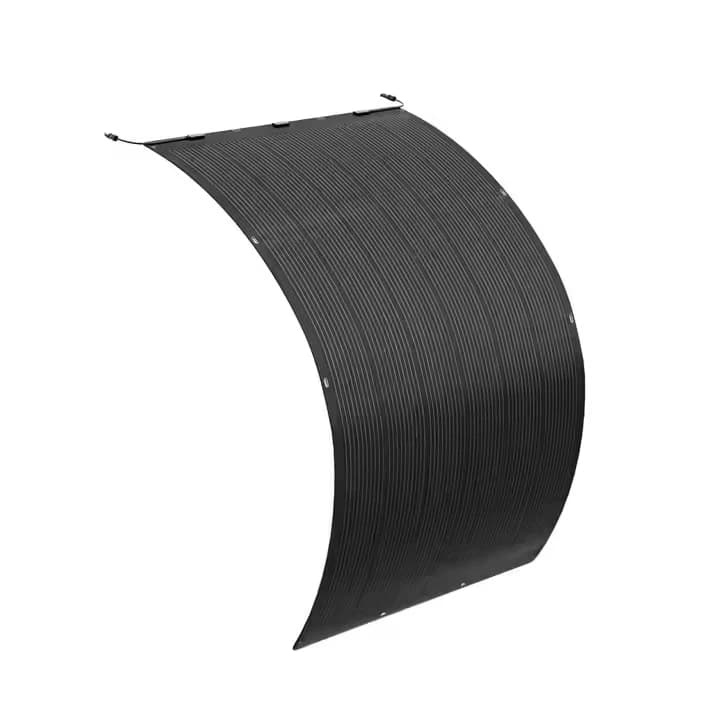

Our flexible solar panels,the efficiency can be up to 24%.And we have CE and TUV certificates. The warranty is 25 years.
ELECTRICAL CHARACTERISTICS
| STC | DT/F2-420W |
| Maximum Power(Pmax) | 420 |
| Maximum Power Voltage (Vmp) | 41.8 |
| Maximum Power Current (Imp) | 10.17 |
| Open-circuit Voltage (Voc ) | 49.6 |
| Short-circuit Current (Isc ) | 10.67 |
| Module Efficiency (%) | 19.2 |
| Operating Temperature | -40℃--85℃ |
| Maximum System Voltage | 1000V DC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Application Class | Class A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Color | Black |
| Irradiance | 1000W/㎡ |
| Cell temperature | 25℃ |

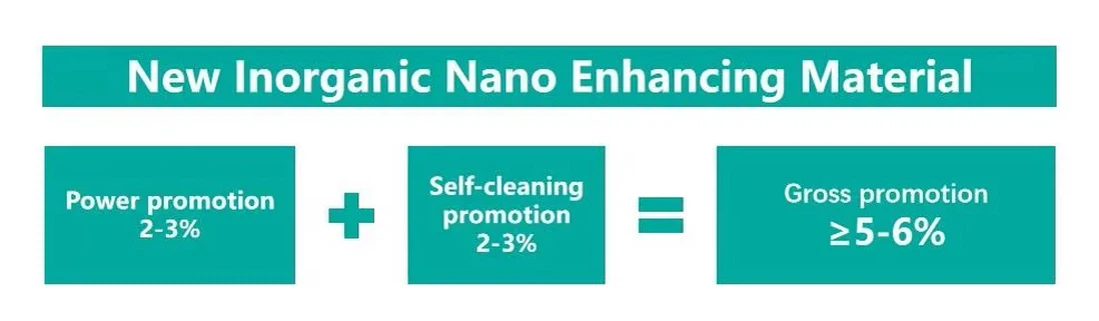

Technical Advantages
1. High weather resistance:Inorganic resin as film forming agent, solidify at room temperature.

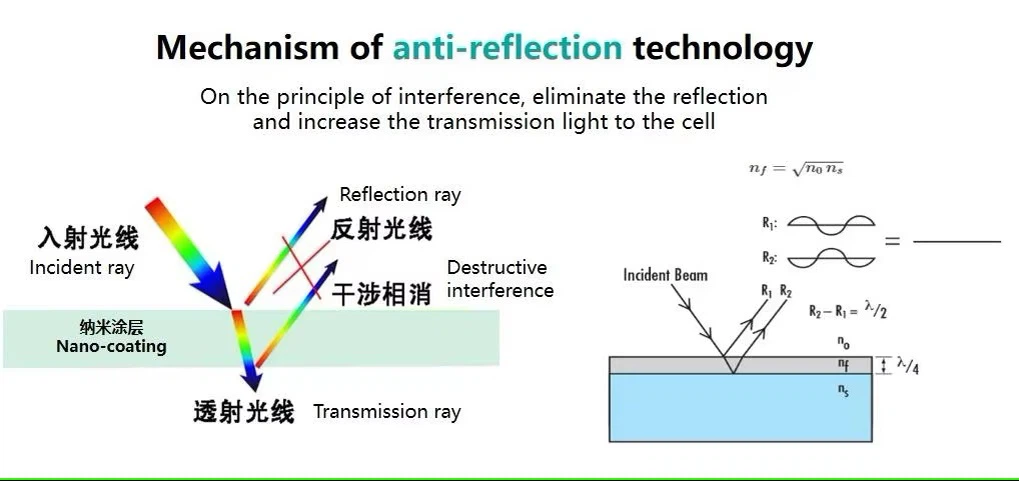

2. High transmittance:Graft modified and homogenized SiO2 to form hierarchical transmission structure.

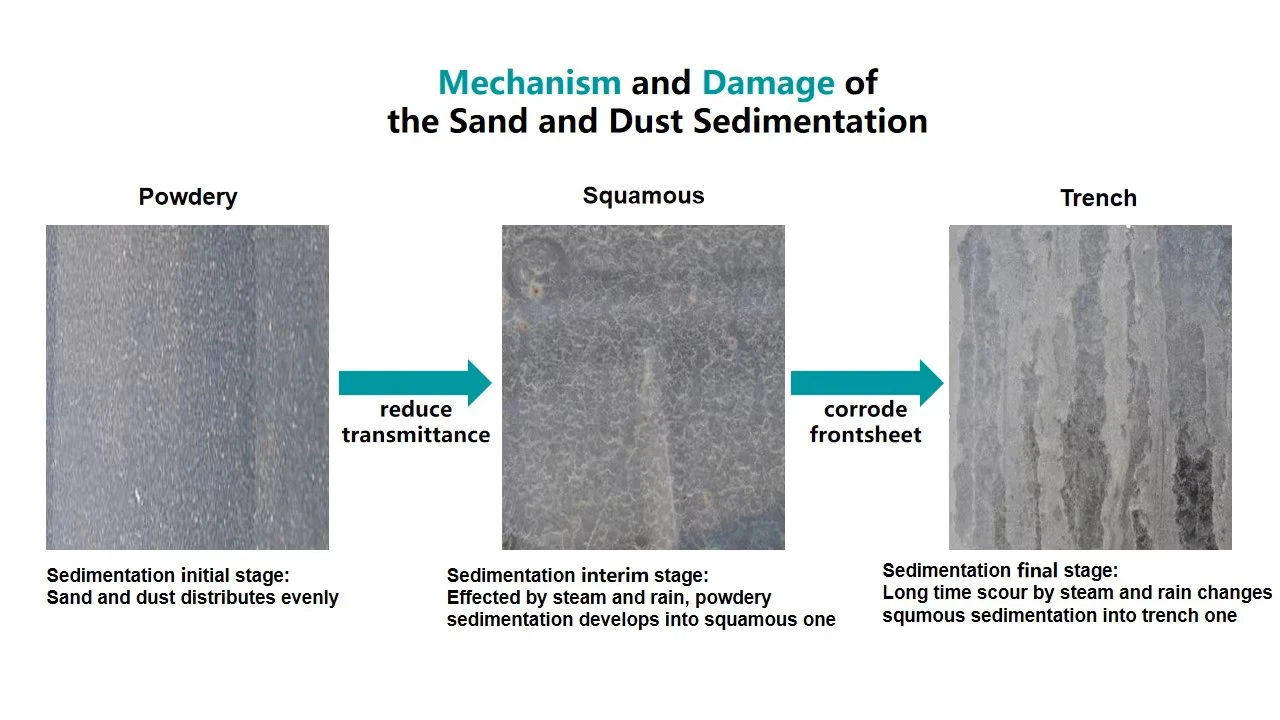

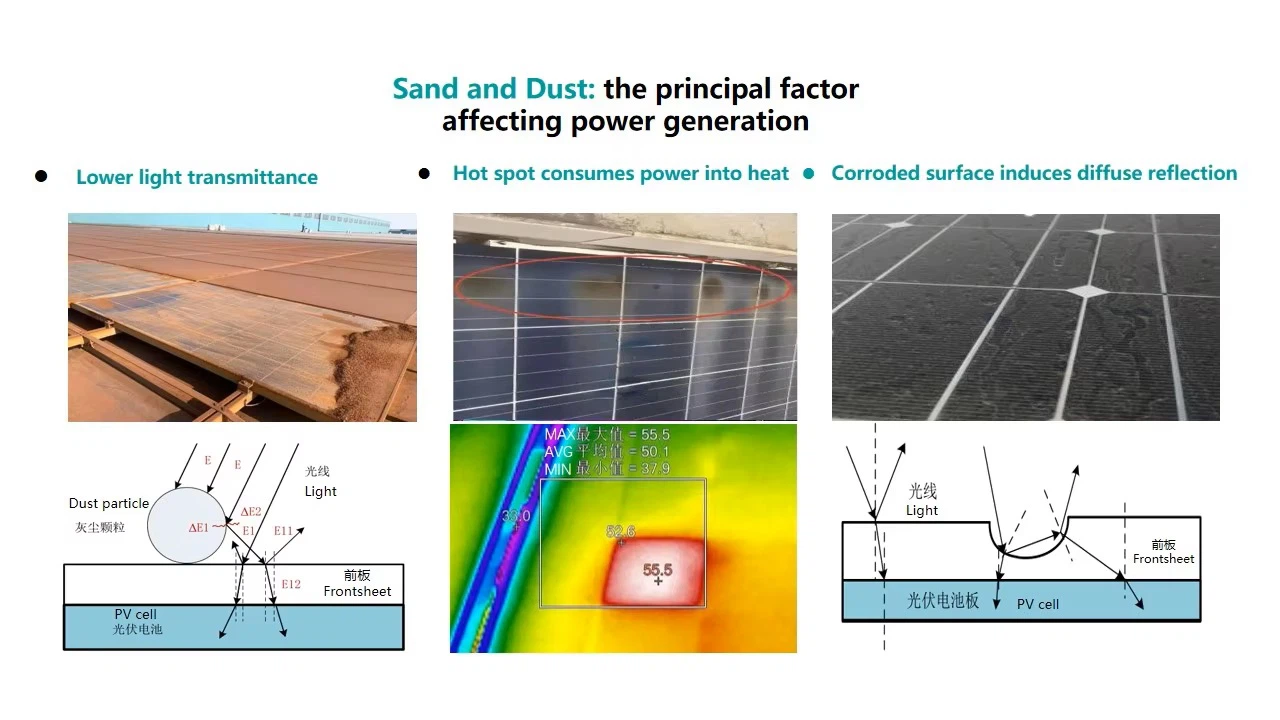

3. Self-cleaning:Self-developed TiO2-Pt catalyst to decompose surface organic stains.
4. Anti-static:Nano-SnO2 was added to improve the anti-static and anti-fouling ability.

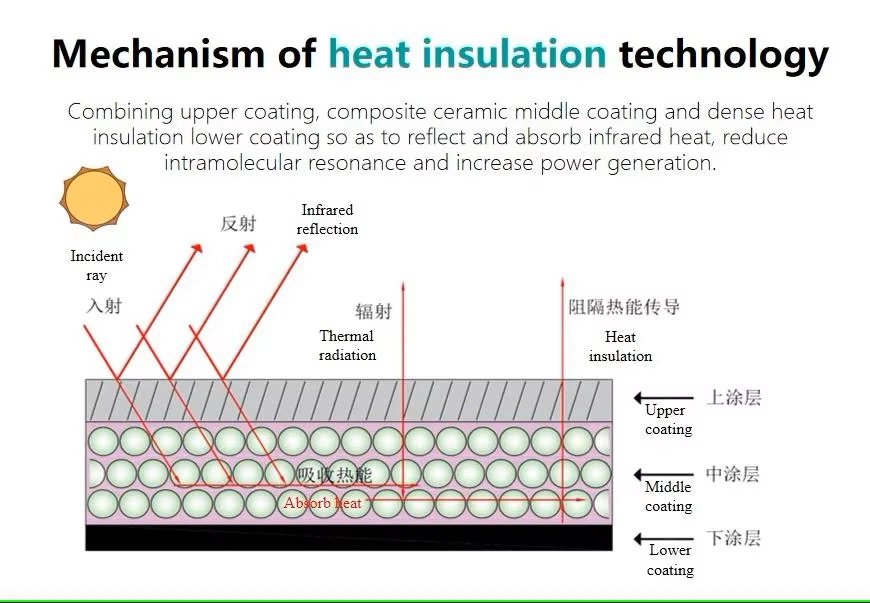

5. Lower surface temperature:Composite metal ceramic nano coating to insulate heat.
