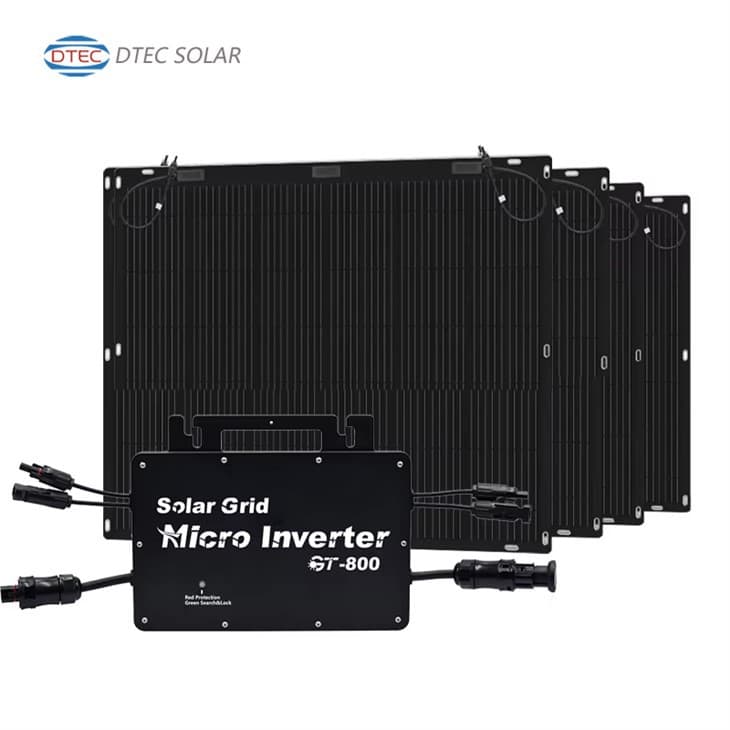

1000W Balcony Solar Panel Energy System Kit

1000W Balcony Solar Panel Energy System Kit

Balcony solar systems are the simplest and most economical plug and play home solar power generators. This power can be fed into the domestic grid via the nearest socket/junction box and inverter. Our 400W/600W/800W balcony solar systems are certified for direct installation and sale in Europe.

Description:

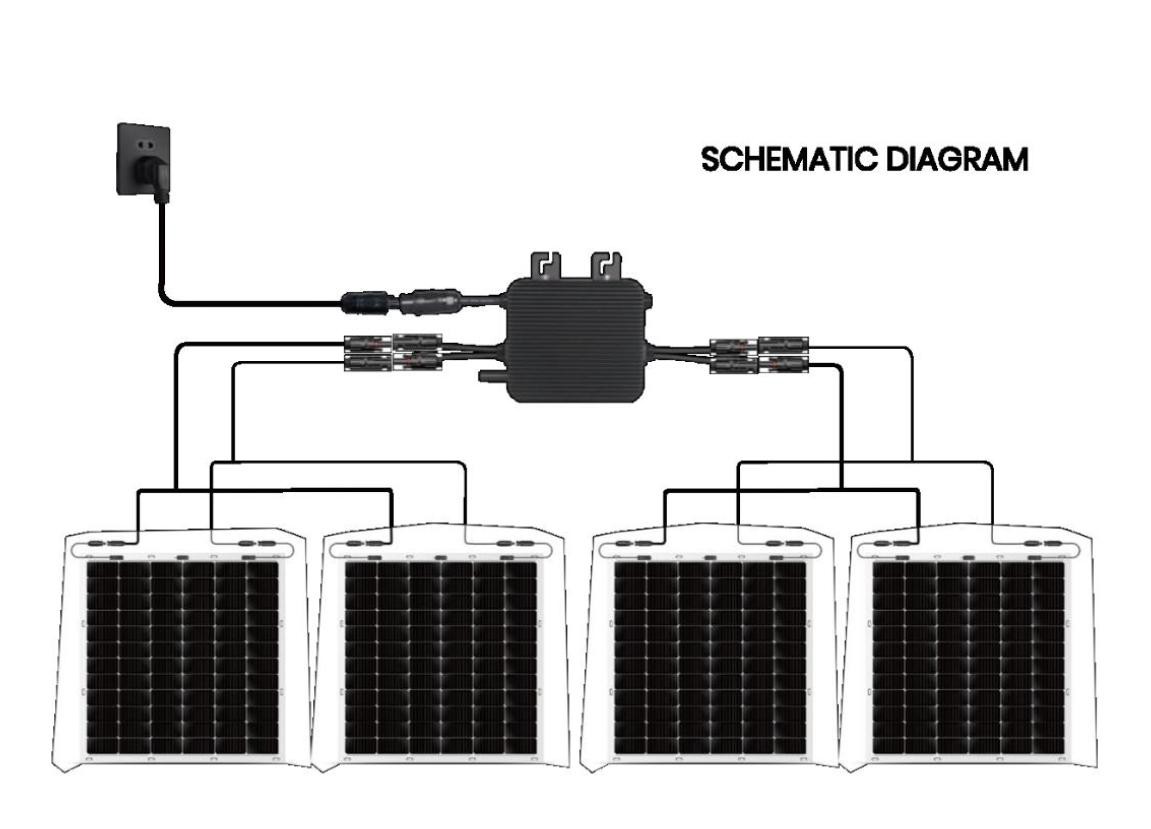

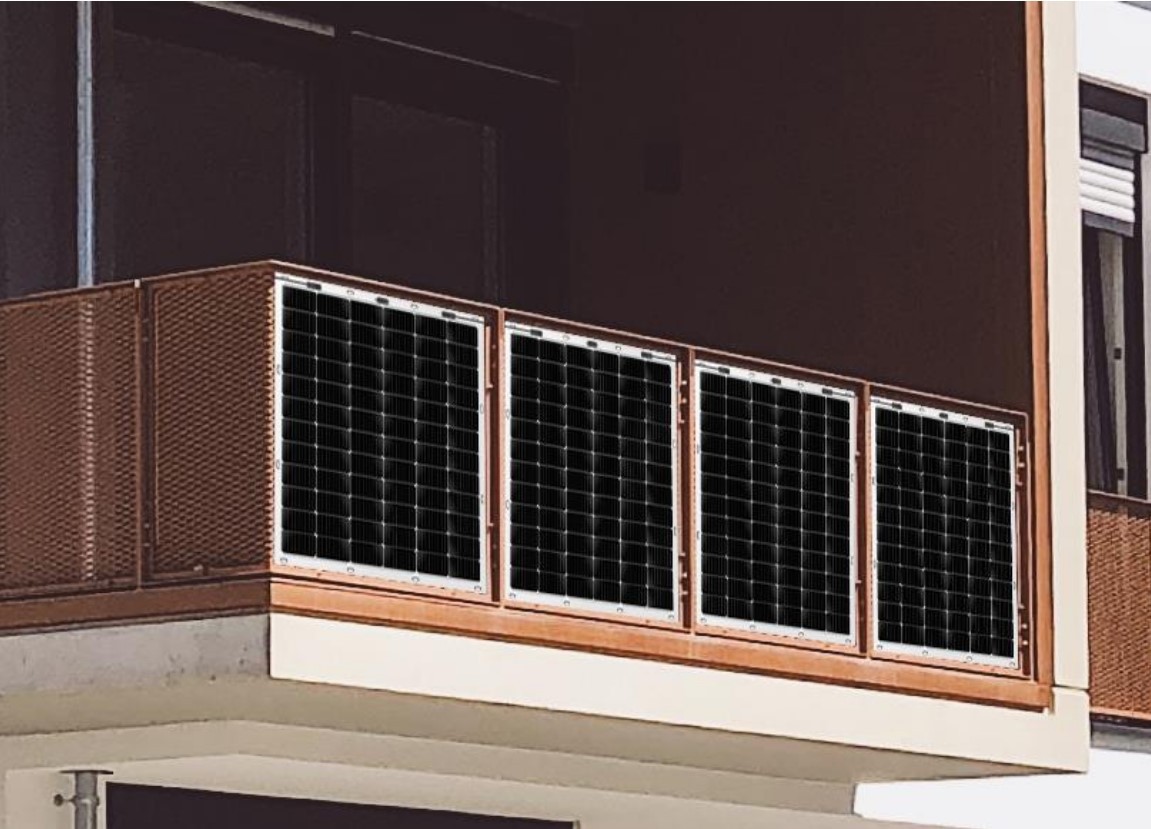

Balcony solar panel kit

solar balconyproduct-1151-829





product-1151-829

Title

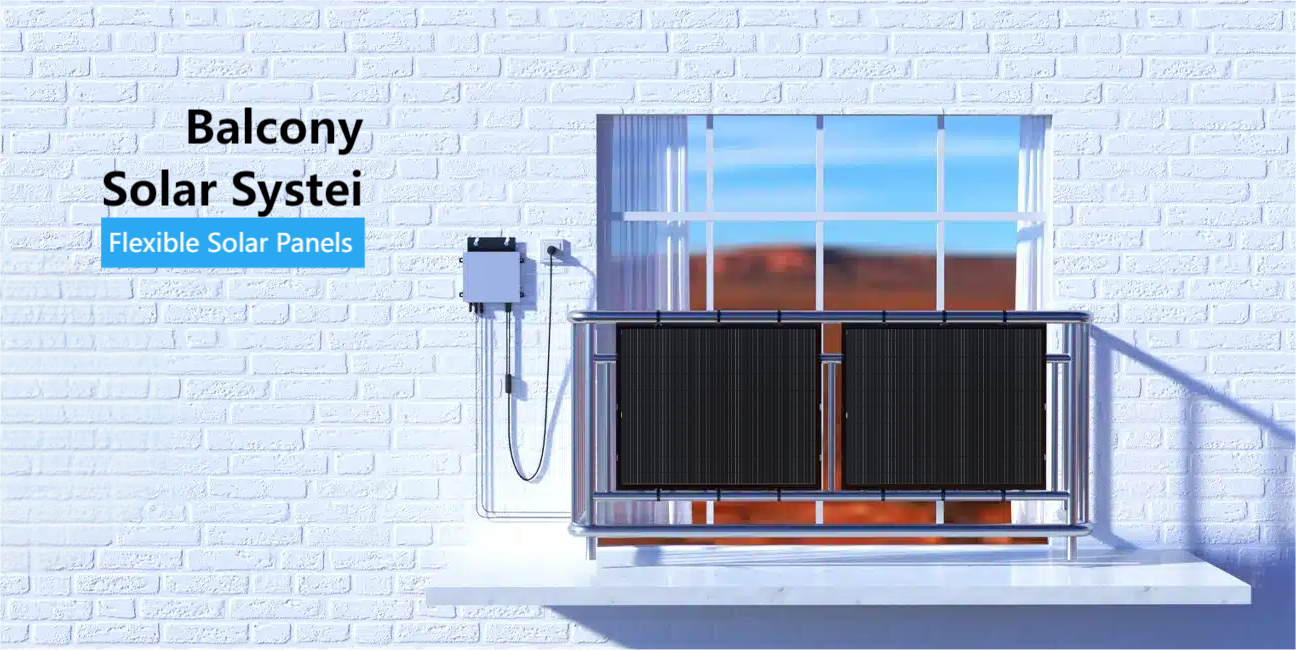

Unlock Urban Solar Potential: The Revolutionary 210W Flexible Solar Panel for Balcony Energy Independence

In an era where urban spaces demand innovative energy solutions, the 210W flexible solar panel emerges as a game-changer for balcony-based solar systems. Combining cutting-edge technology with user-centric design, this ultra-thin, lightweight solution empowers city dwellers to harness renewable energy effortlessly-without compromising aesthetics or functionality.

Why Choose 210W Flexible Solar Panels?

Unmatched Adaptability

Surface Compatibility: Bendable up to 30°, these panels conform seamlessly to curved balcony railings, glass surfaces, or even pergolas-eliminating the "flat roof only" limitation of traditional rigid panels.

Weight Advantage: At just 2.3 kg/m² (vs. 15 kg/m² for glass modules), they impose minimal structural load, making them ideal for high-rise apartments and historic buildings with weight restrictions.

Plug-and-Play Simplicity

No Permits, No Hassle: Most systems under 800W qualify as "plug-in devices" in regions like the EU, bypassing complex grid-connection approvals.

DIY Installation: Secure panels in 90 minutes using adhesive strips or non-penetrating clamps-no drilling, no specialized tools.

High Efficiency, All-Weather Reliability

22.5% Cell Efficiency: Monocrystalline PERC cells with anti-reflective coating ensure optimal performance even in low-light conditions (e.g., 85% output on cloudy days).

Extreme Durability: IP68-rated encapsulation resists hail (up to 25mm diameter), salt spray, and temperatures from -40°C to +85°C-proven in Berlin winters and Dubai summers.

Aesthetic Integration

Sleek, Low-Profile Design: 2.5mm thickness and matte-black finish blend invisibly with modern architecture.

Zero Glare: Anti-glare coating prevents light pollution, complying with strict HOA regulations in condominiums.

Cost-Effective Sustainability

ROI in 3–4 Years: Generate 0.8–1.2 kWh daily (region-dependent), slashing electricity bills by 25–35% annually.

Carbon Neutrality: Offset 320 kg of CO₂ emissions yearly-equivalent to planting 15 trees.


Technical Edge Over Traditional Panels

Feature

210W Flexible Panel

Conventional 210W Glass Panel

Weight

2.3 kg/m²

15 kg/m²

Thickness

2.5mm

35mm

Wind Load

Withstands 150 km/h winds

Requires heavy mounting frames

Installation Cost

$0.15/W

$0.35/W (with racking)


Real-World Applications

Rental-Friendly Energy: Tenants can install/remove panels without landlord approval-ideal for transient urban populations.

Emergency Readiness: Pair with a 1kWh LiFePO4 battery (sold separately) for 8+ hours of backup power during outages.

Smart Home Synergy: Integrate with Tesla Powerwall or Huawei Luna 2000 via hybrid inverters for 24/7 energy optimization.


Certifications & Safety

Global Compliance: IEC 61215 (safety), IEC 61730 (fire resistance), and RoHS-certified lead-free materials.

Warranty: 12-year product warranty + 25-year linear power output guarantee (≥80% efficiency at EOL).


The Future of Urban Solar Starts on Your Balcony

The 210W flexible solar panel isn't just a product-it's a movement toward democratized clean energy. By overcoming space, weight, and regulatory barriers, it transforms underutilized balconies into personal power plants.

Act Now: Join 50,000+ eco-smart households across 30 countries who've reduced their carbon footprint while enjoying energy bill freedom.

Learn More: Visit [YourBrand.com] for installation guides, ROI calculators, and real-user testimonials.



product-1-1

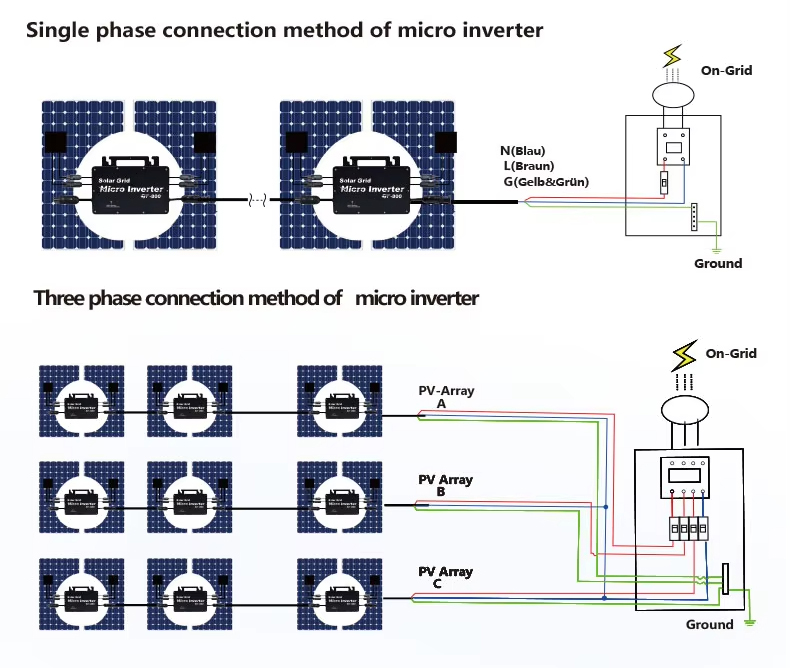

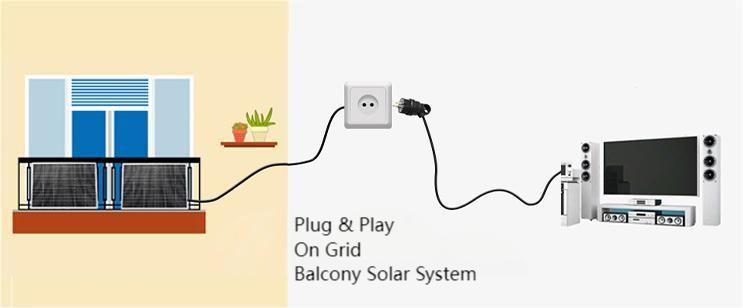

 Connection method of micro inverter

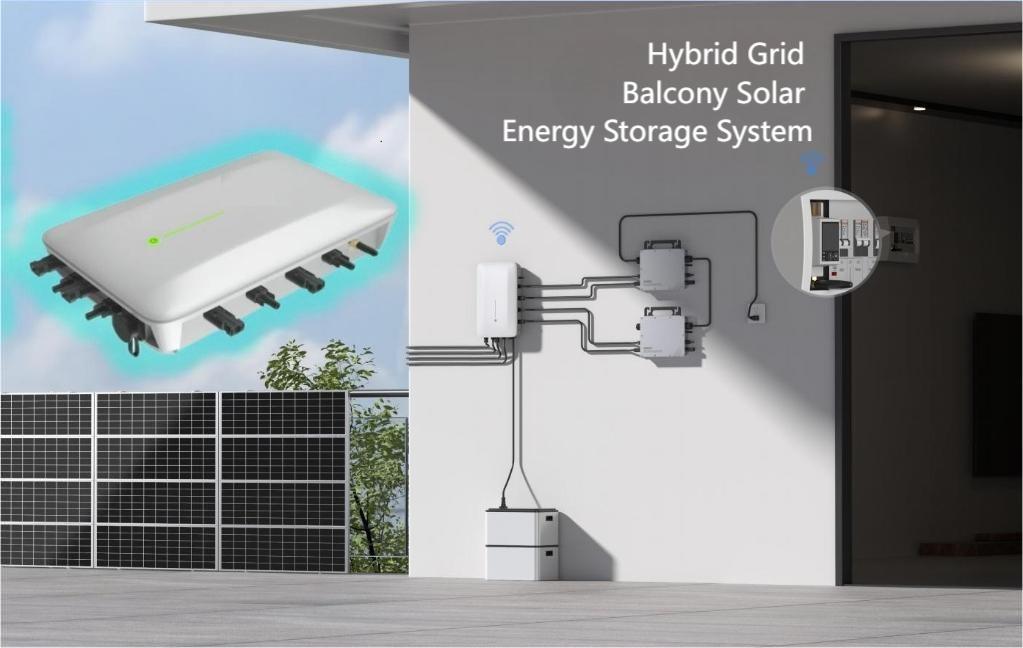

Balcony Solar Energy Storage System

Balcony solar system with battery:Balcony solar system with batteries for off-grid operation or outdoor camping power supply, flexible use scenarios.



Product Parameter

Input | DC

DTM400P

DTM600P

DTM800P

Recommended PV Module Power Range /W

200X2

200 x 3

200 x 4

MPPT Voltage Range /V

22-55

22-55

22-55

Startup Voltage /V

24

24

24

Max. Input Voltage /V

60

60

60

Max. Input Current /A

14

14

14

Overvoltage Protection Category

II

II

II

Output | AC

Peak Output Power /VA

400

600

800

Max. Continous Output Power /VA

450

650

850

Max. Continous Output Power /VA

230

230

230

Nominal Output Voltage Range /V

Configurable

Configurable

Configurable

Max. Continous Output Current /A

1.3

2.52

3.26

Nominal Frequency / Range /Hz

50 / Configurable

50 / Configurable

50 / Configurable

Power Factor (Nominal/Adjustable Range)

1.0/0.8 leading…0.8 lagging

1.0/0.8 leading…0.8 lagging

1.0/0.8 leading…0.8 lagging

AC Short Circuit Fault Current Over 3 cycles /Arms

2.2

4.4

8.2

THDi@Rated Power

<3%

<3%

<3%

Max. Units per 20A Branch

12

6

5

Overvoltage Protection Category

III

III

III

General Data

Operating Ambient Temperature Range/℃

-40~65

-40~65

-40~65

Relative Humidity Range

0-100%

0-100%

0-100%

Dimensions (W x H x D) /mm

180 x 186 x 25

227 x 132 x 50

268 x 250 x 42

Weight /kg

1.5

2.9

2.9

DC Connector Type

MC4

MC4

MC4

AC Connection Type (inverter-inverter)

Daisy Chain AC Bus

Daisy Chain AC Bus

Trunk Cable

Communication Method

PLC or WiFi

PLC or WiFi

PLC or WiFi

Efficiency

Peak Efficiency

97.1%

97.1%

97.3%

MPPT Efficiency

>99.5%

>99.5%

>99.5%

Night Power Consumption /mW

80

110

110

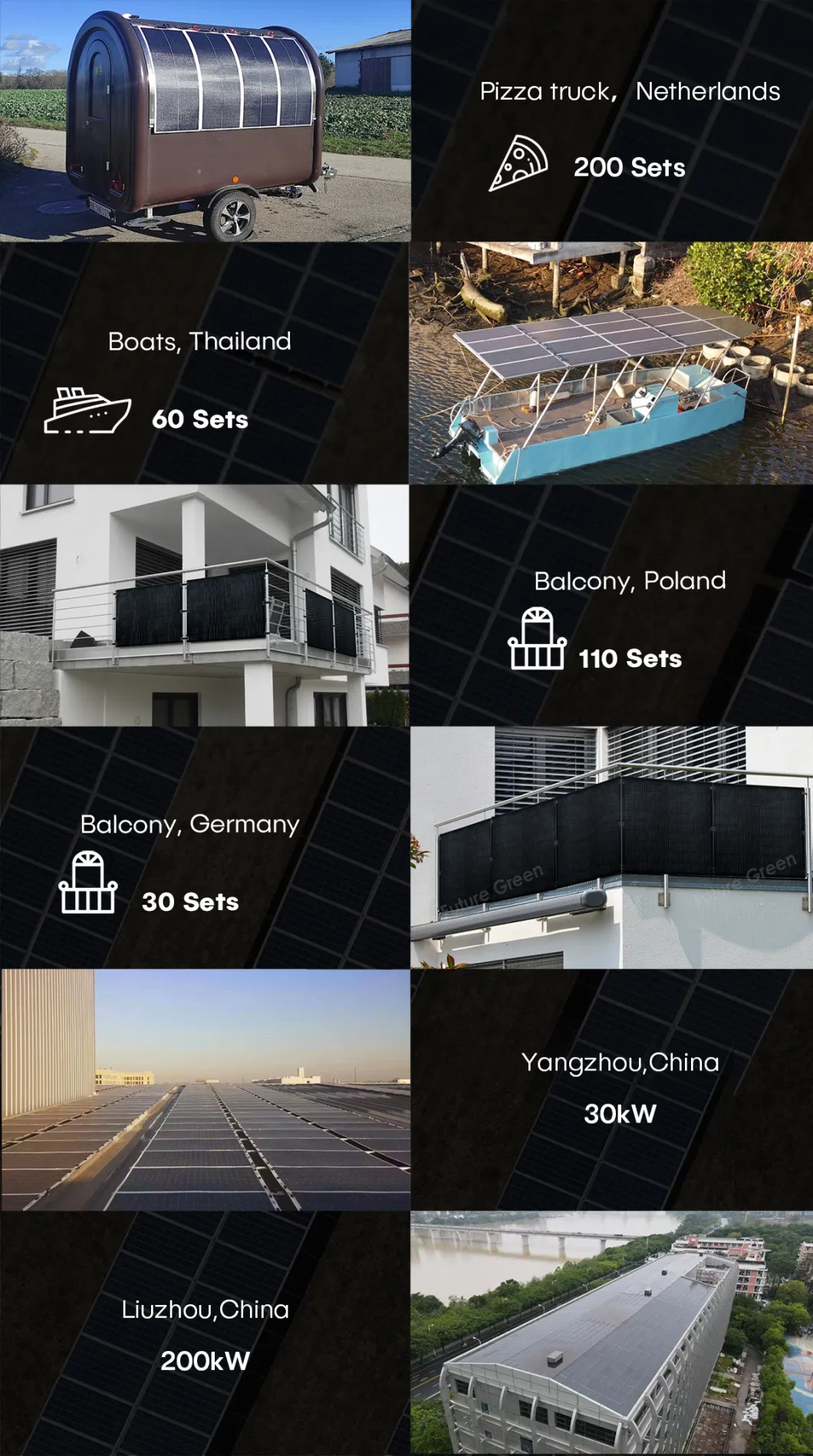

Project Case

Lightweight Flexible Solar Panel Case

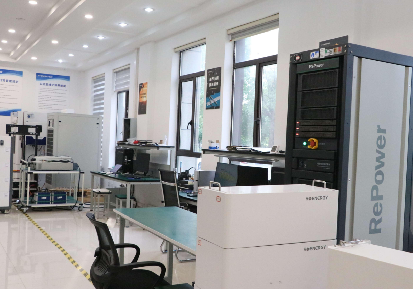

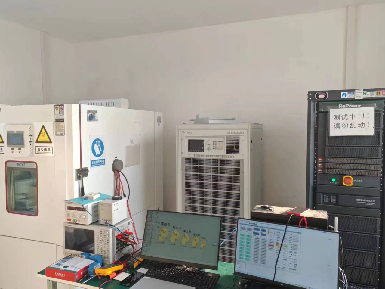

Research and development
laboratory



product-1545-324

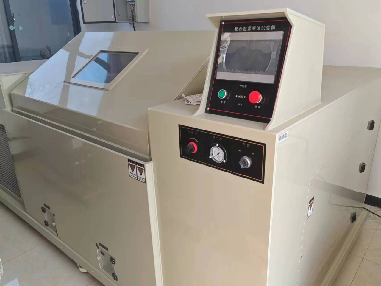

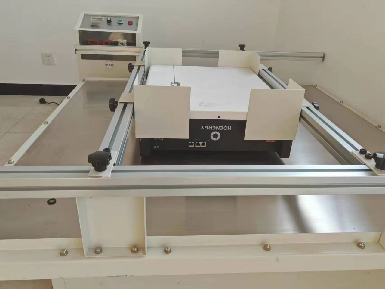

Numerical Experiment and Testing Center

Scene 01

product-386-289

Scene 02

product-385-289

Scene 03

product-381-286

Scene 04

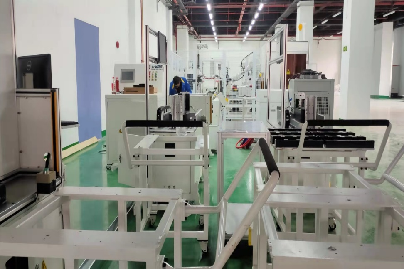

Energy storage production base

Shanghai 1GWh Residential ESS PACK production line.

Shanghai The 3GWh Commercial ESS PACK production line

ongkang 5GWh digital energy storage industrial base (under construction)

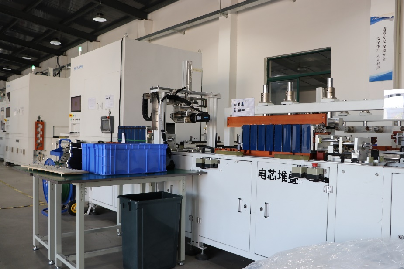

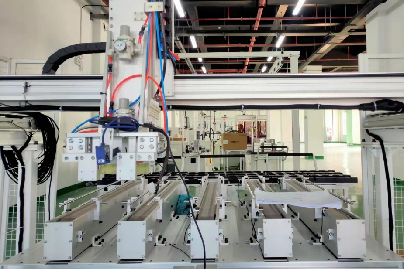

production line
